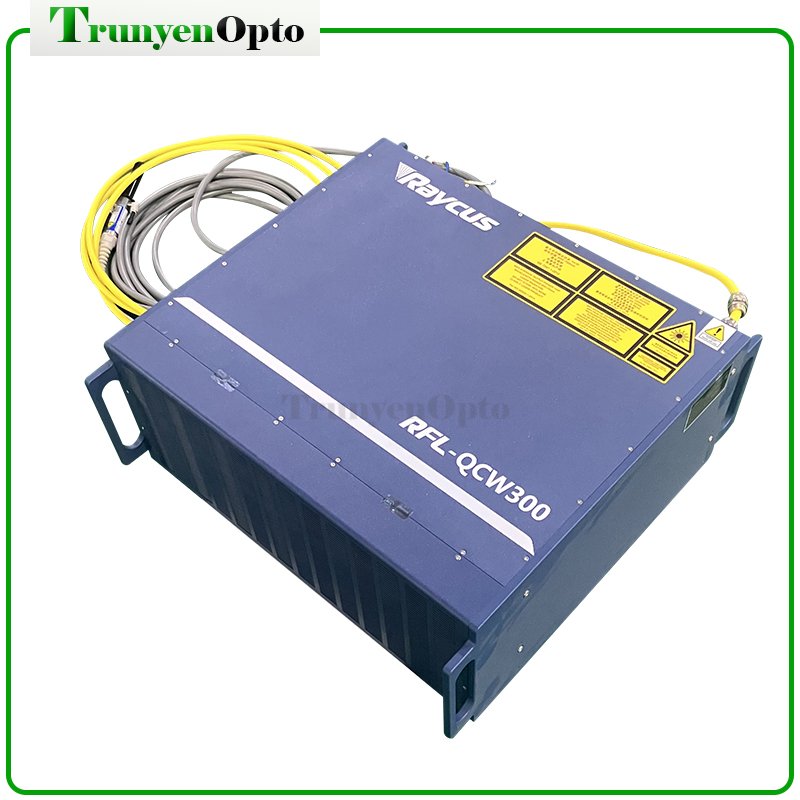

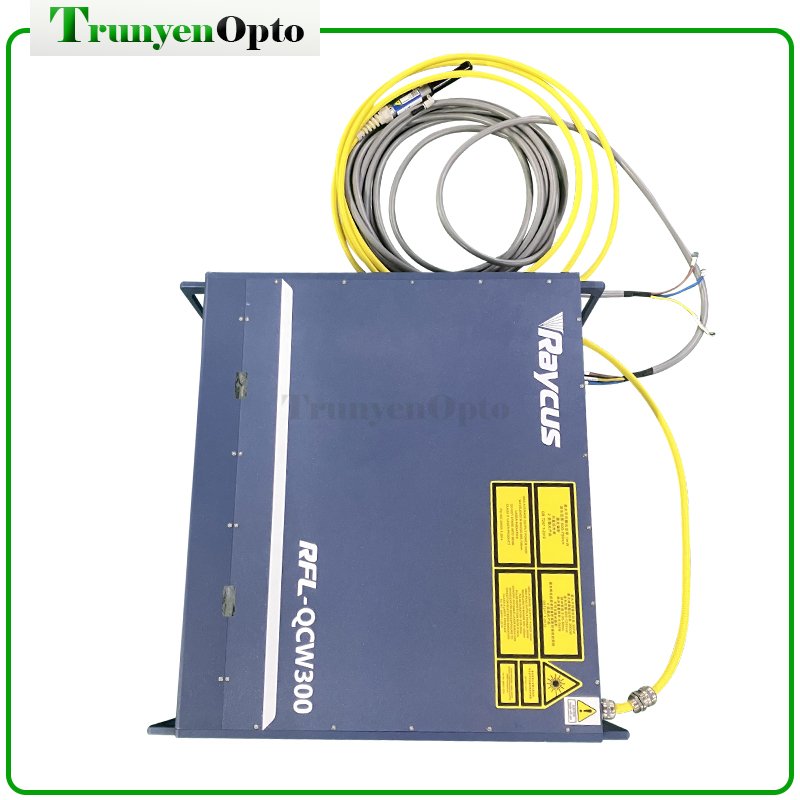

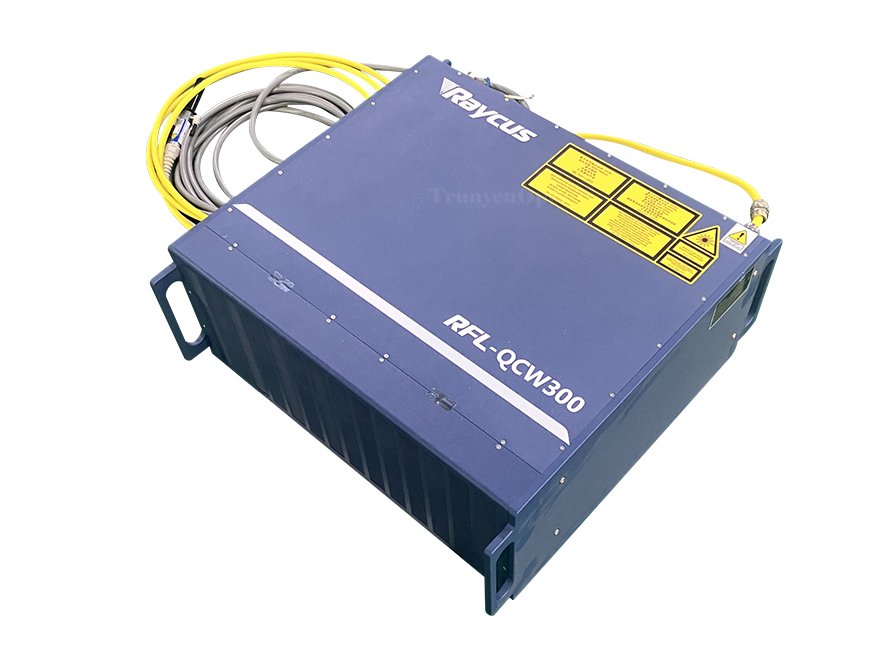

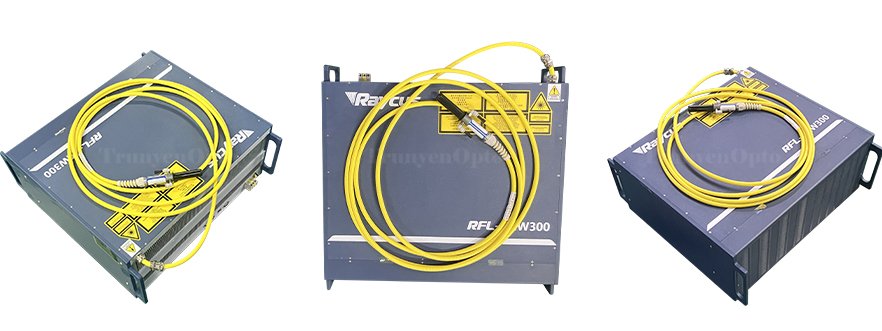

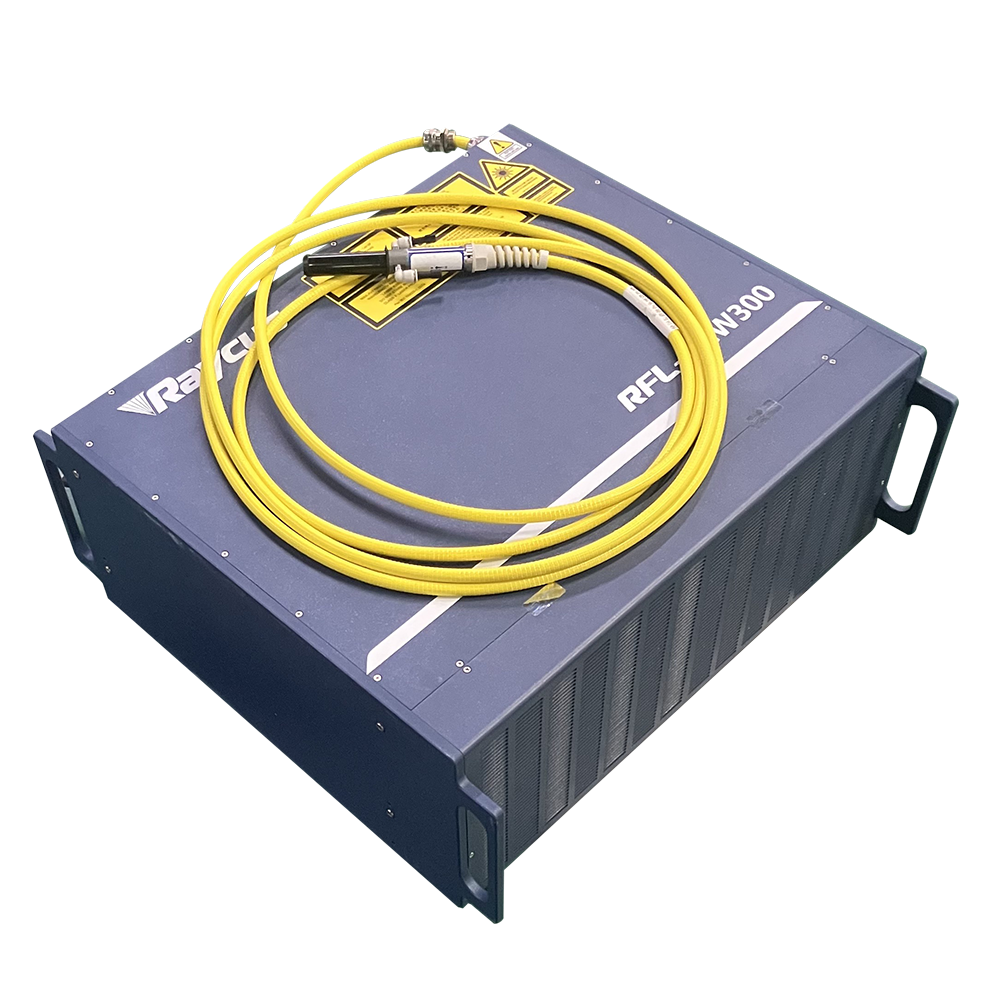

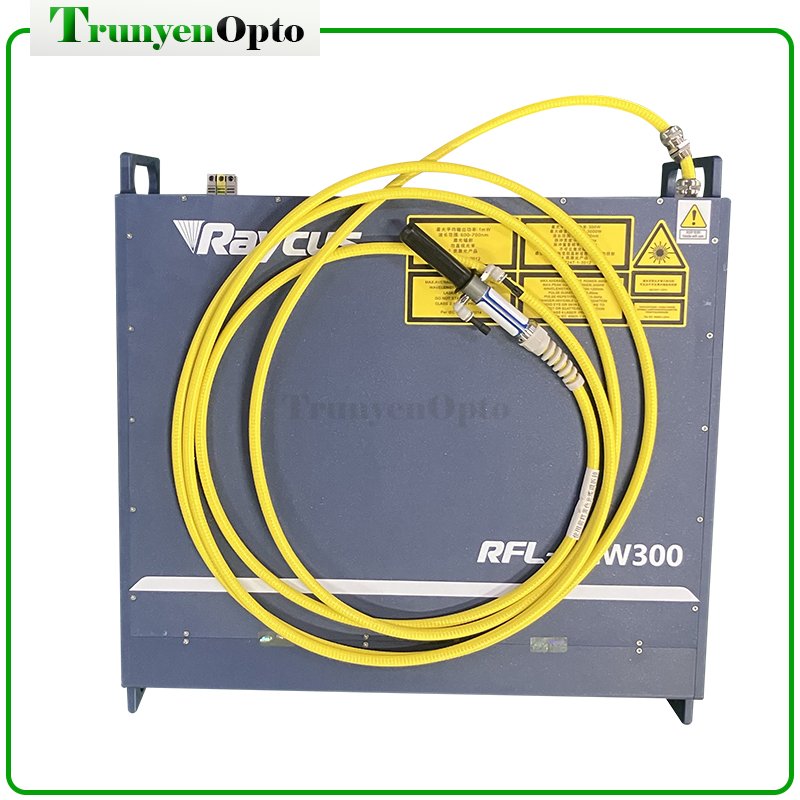

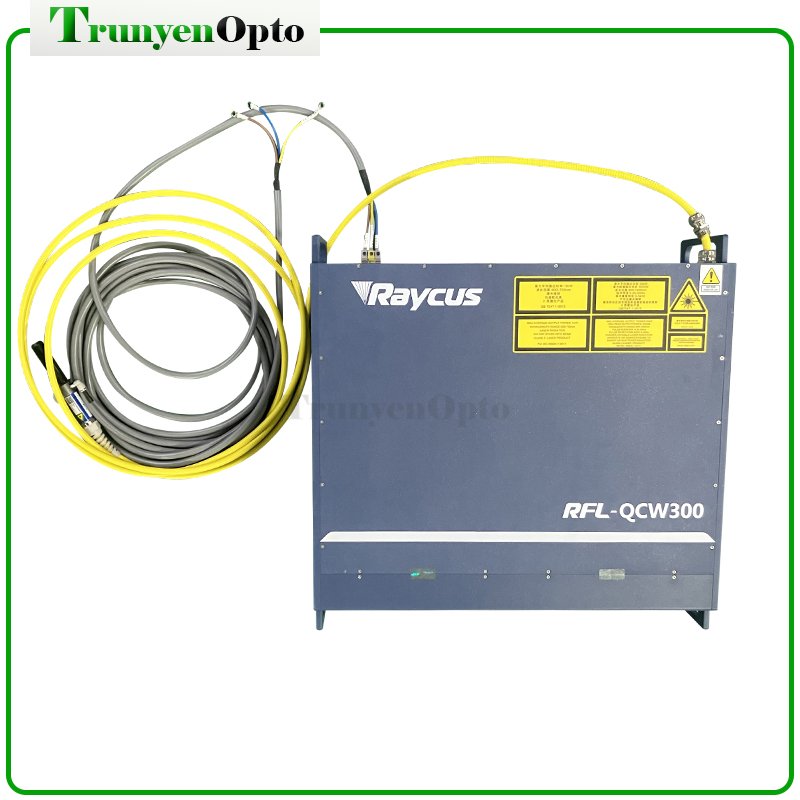

Raycus QCW laser RFL-300/3000
Quasi-continuous wave laser
The Raycus QCW laser 300W is a replacement for YAG laser power supplies. Small spot size and deep weld penetration are the main features. It supports two laser emission modes: pulsed and continuous. QCW laser can be used for spot laser welding, sealing, drilling, and other industrial applications.
Technical Features
- Two operating modes: continuous mode and pulse mode
- Peak output power: 3000W, stable output performance
- Output interface: QBH
- Fiber optic length: optional
- Cooling method: air cooling
Output characteristics
- Average power(CW，Pulse) (W) 300
- Max.Output Power(W) 3000
- Max. Pulse Energy(J) 30
- Central wavelength: (nm) 1080±5
- Repetition Frequency(Hz) 0-5000
- Pulse Width(ms) 0.05-50
- Output power instability ±1.5%
Electronic control characteristics
- Output connector QBH
- Oput fiber core diameter (μm) 50
- BPP（mm.nrad) <2.5
- Input power (V DC ): 48
- Control mode RS232/AD/ Ethernet
- power adjustment range (%) 10-100
