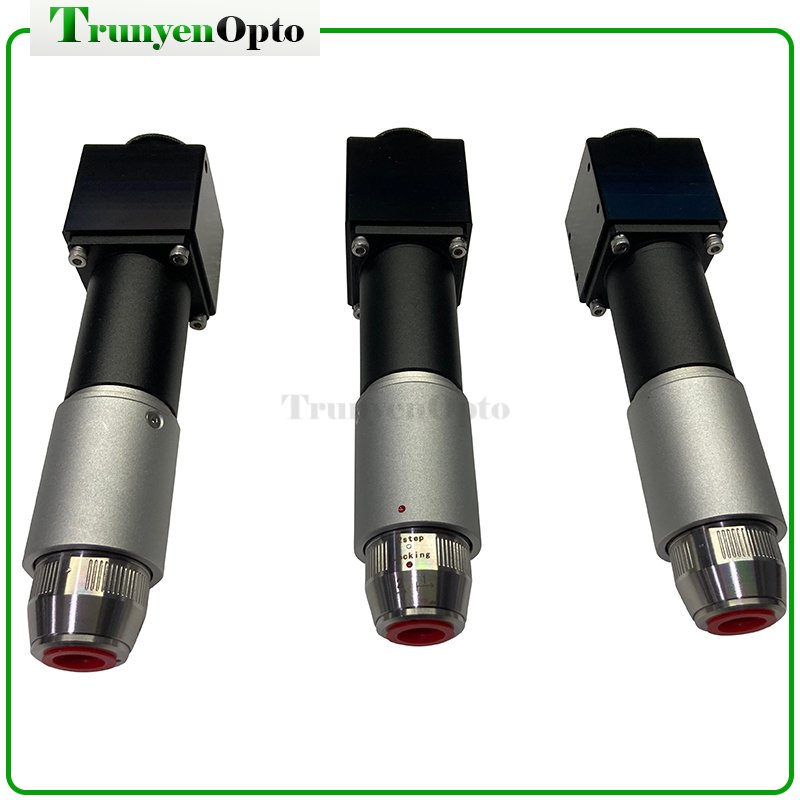

Fiber Laser Collimator For Laser Power 500W 1000W 2000W 3000W

Name: Fiber Laser Collimator For Laser Power 500W 1000W 2000W 3000W
Brand: TrunyenOpto
SKU: 3083
Availability: InStock

$780 – $950

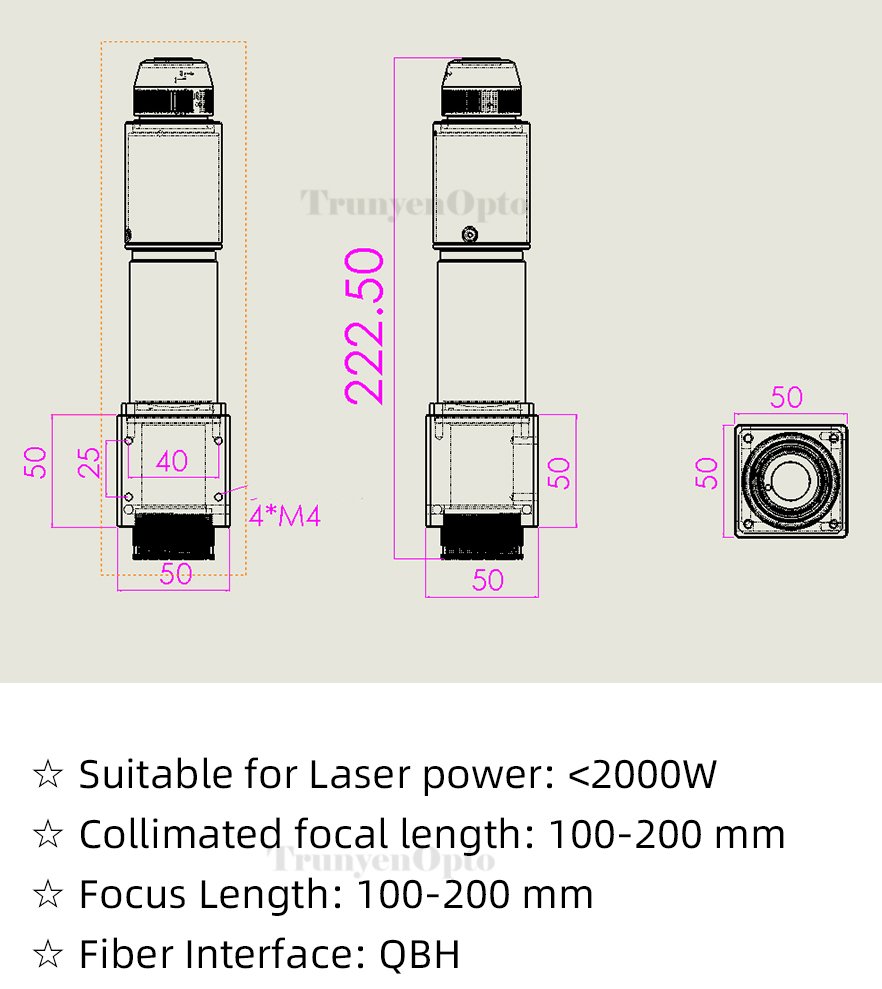

Laser power: <2000W (Air-cooled) <3000W (Water-cooled)

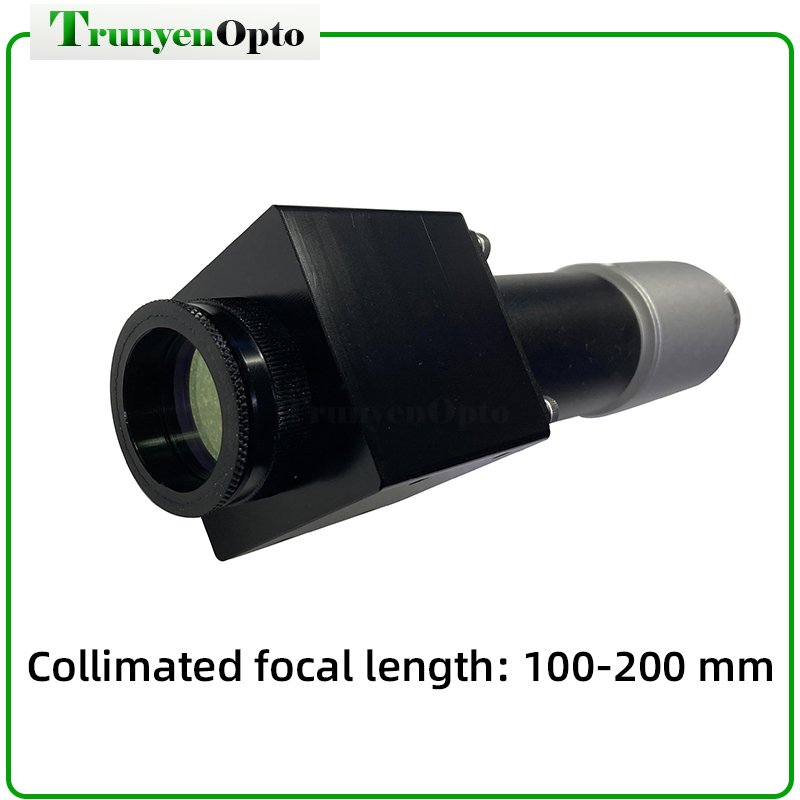

Collimated focal length: 100-200 mm

Focus Length: 100-200 mm

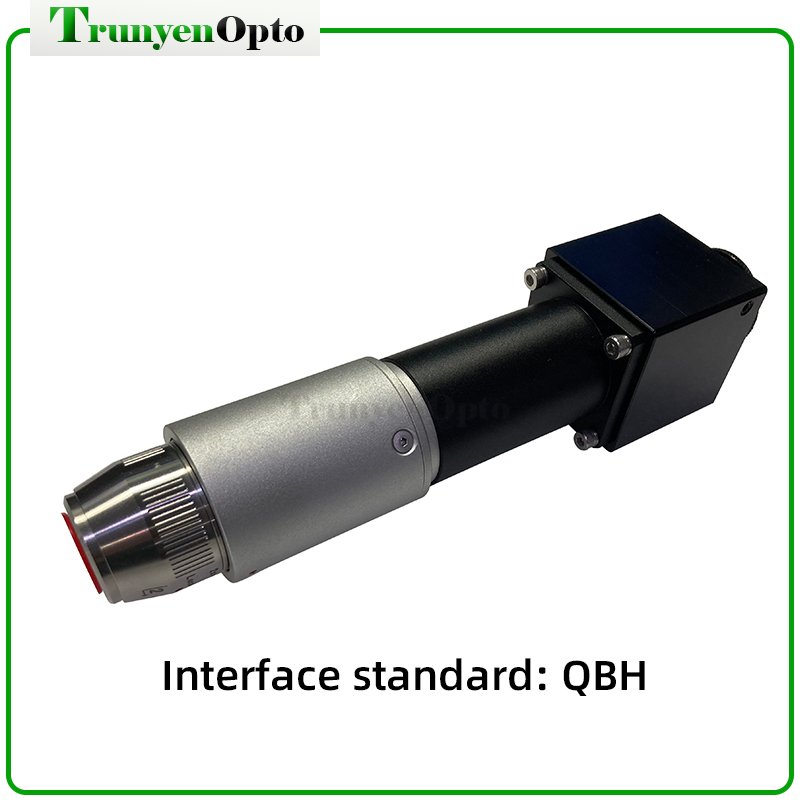

Fiber Interface: QBH

Cooling Method

Clear

SKU: N/A Categories: Laser Head, Laser Parts Tag: Laser collimator Brand: TrunyenOpto

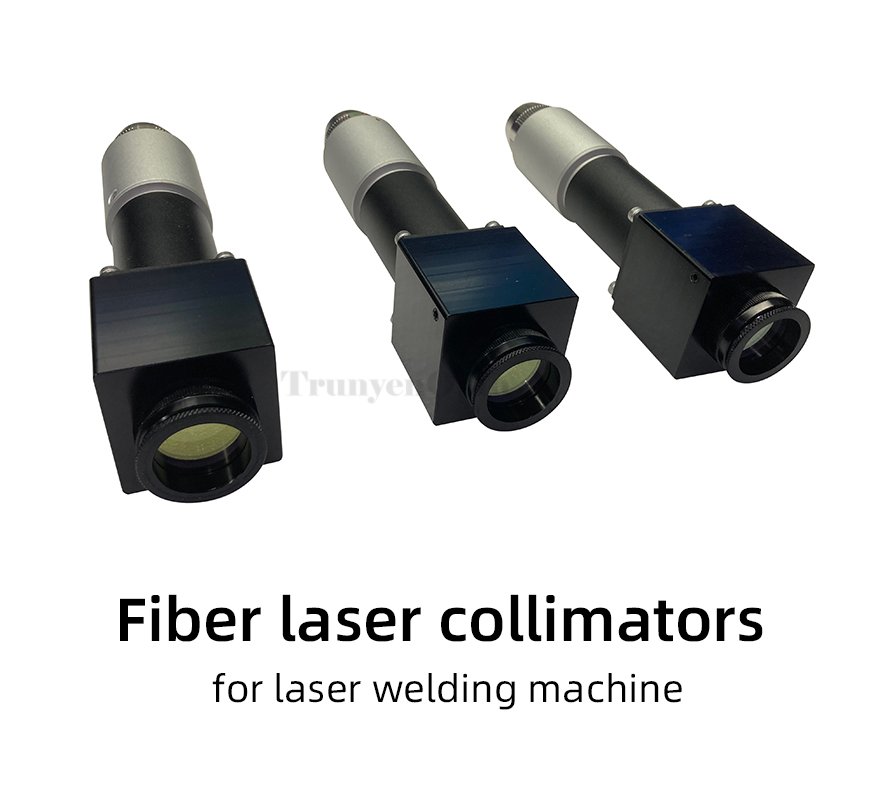

1 Description of the laser collimator

The laser collimator is a critical optical component in a laser welding system. It converts the scattered light into parallel light. We can choose the laser collimator based on the power of the laser welding.

This product is suitable for 500W, 1000W, 2000W, and 3000W laser power. With the use of the multi-angle focusing lens, It is especially perfect for semiconductor lasers, fiber lasers, and other lasers with light sources with a divergence angle. The water-cooled structure cools the lens group in welding, controls temperature increase, and reduces the thermal drift of the optical focal length, so as to ensure the stability of processing quality.

If the fiber laser power is <2000W, you can select an AIR-COOLED one.
If the fiber laser power is <3000W, you can select a WATER-COOLLED one.

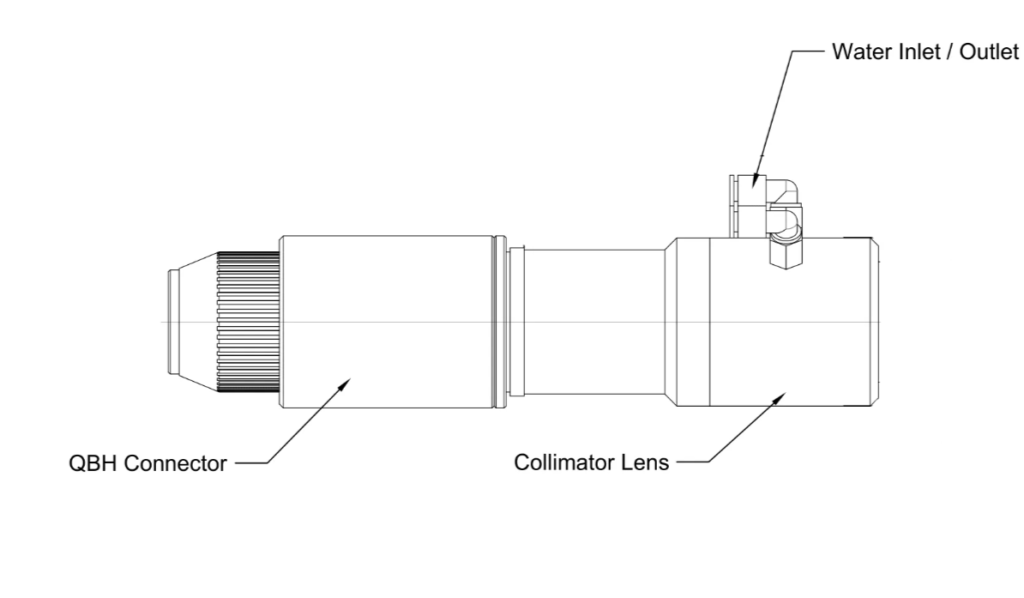

2 Structure

The collimating lens is the core component of a laser collimator. According to the number of collimating lenses, laser collimator systems can be divided into single-lens systems and multi-lens systems. In addition to the lens, the laser collimator also requires a barrel and an adjustment device. (For more details, please check here.)
