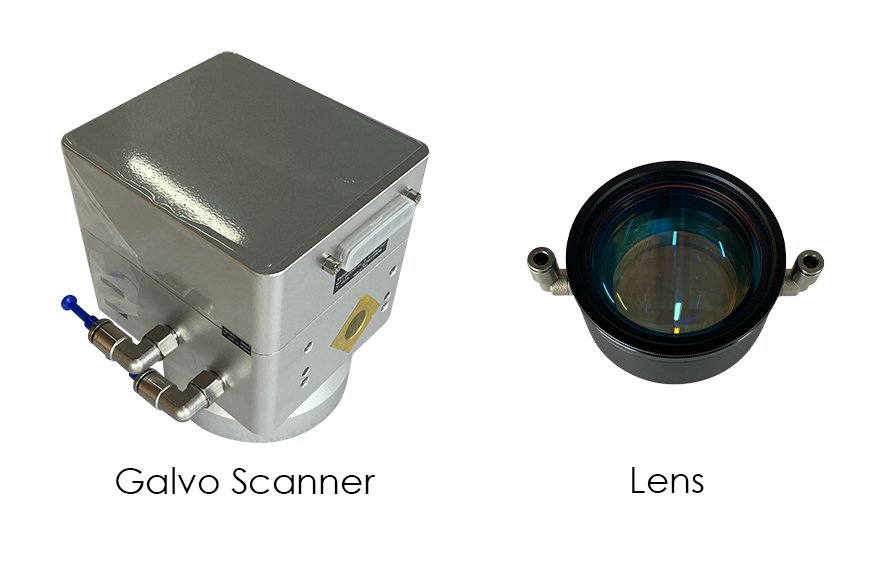

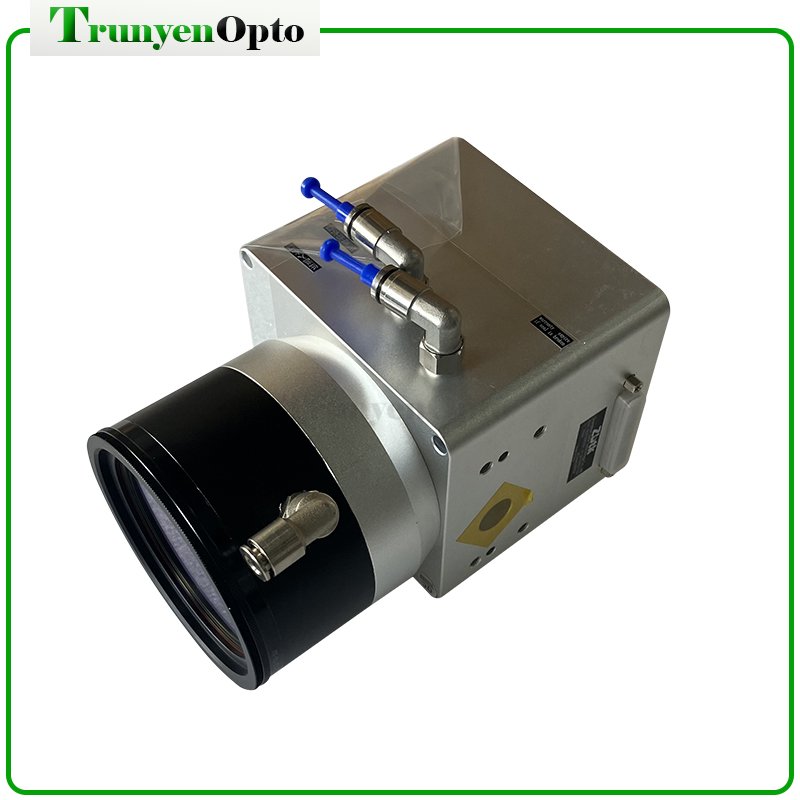

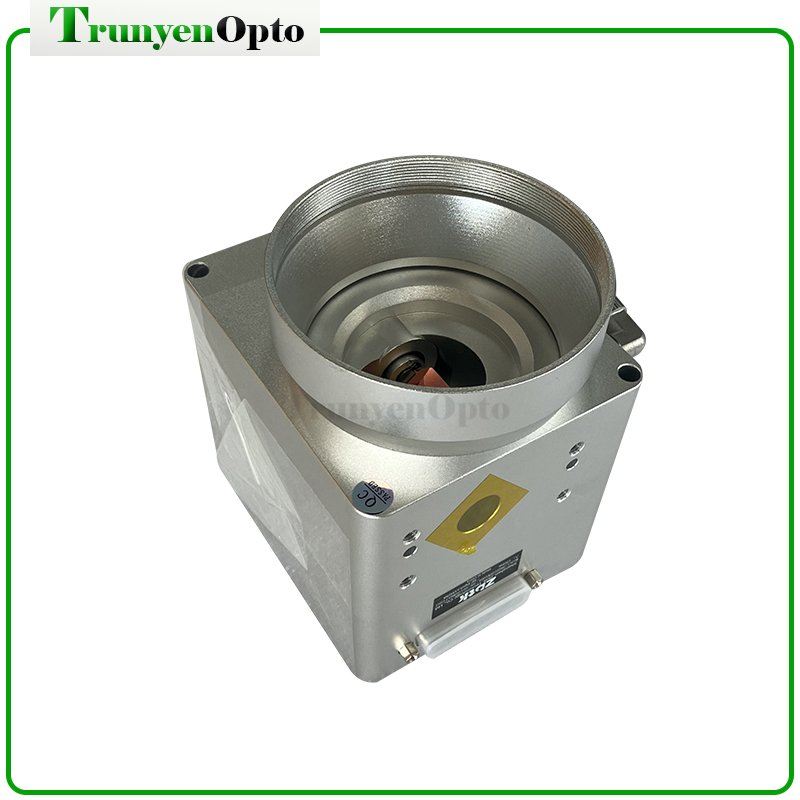

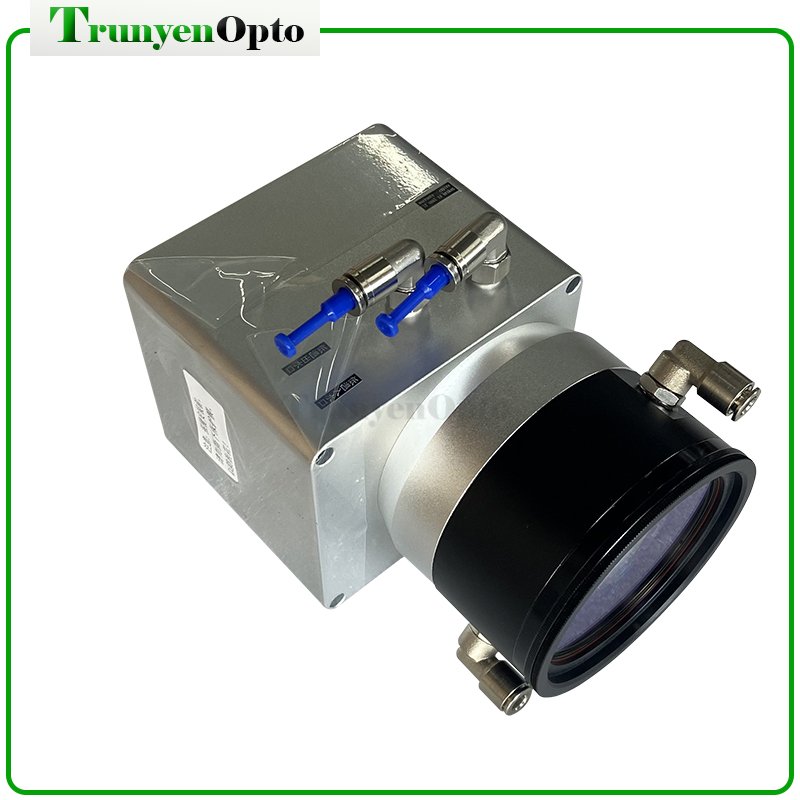

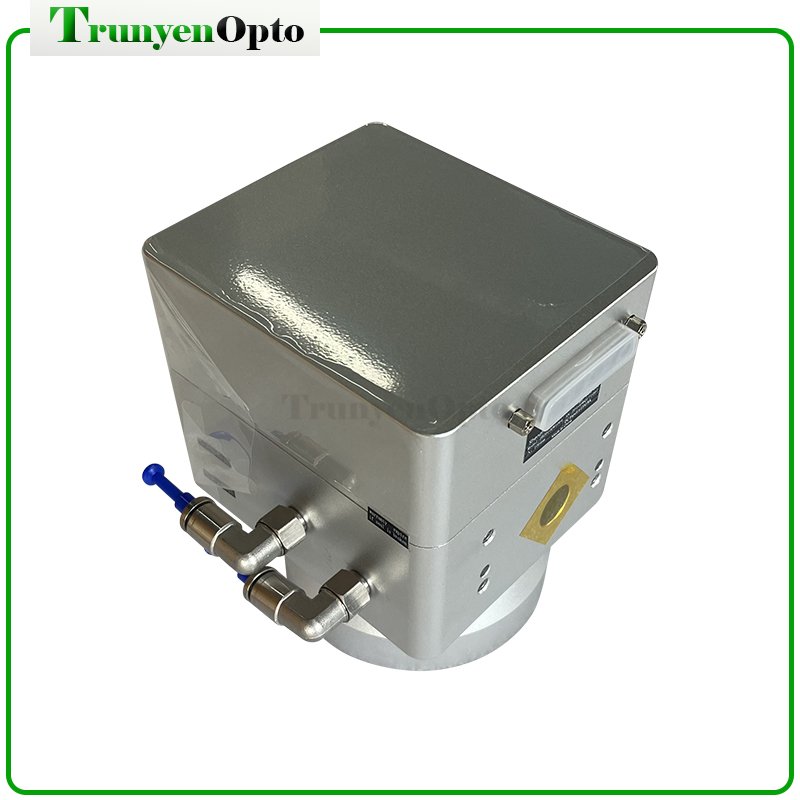

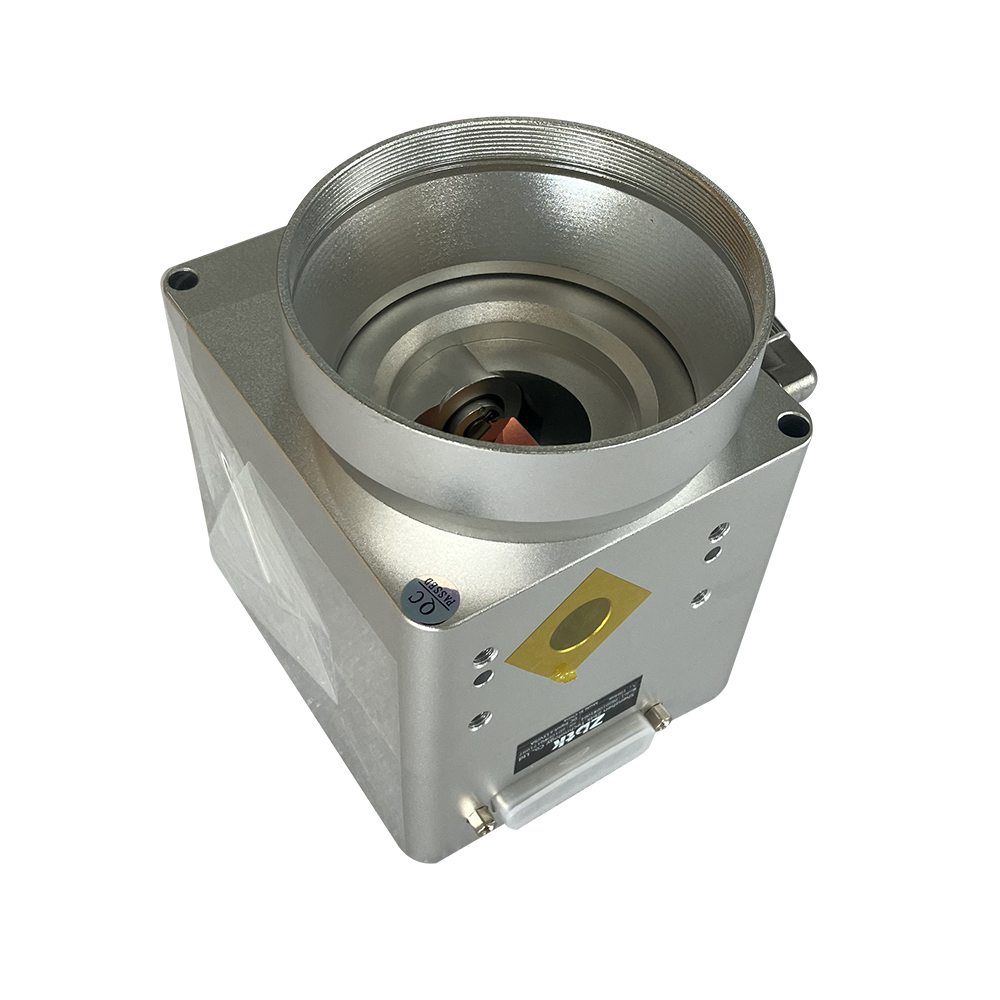

10mm High Cost-effective Galvo Scanner For Laser Cleaning Machine
>>Introduction To The Galvo Scanner

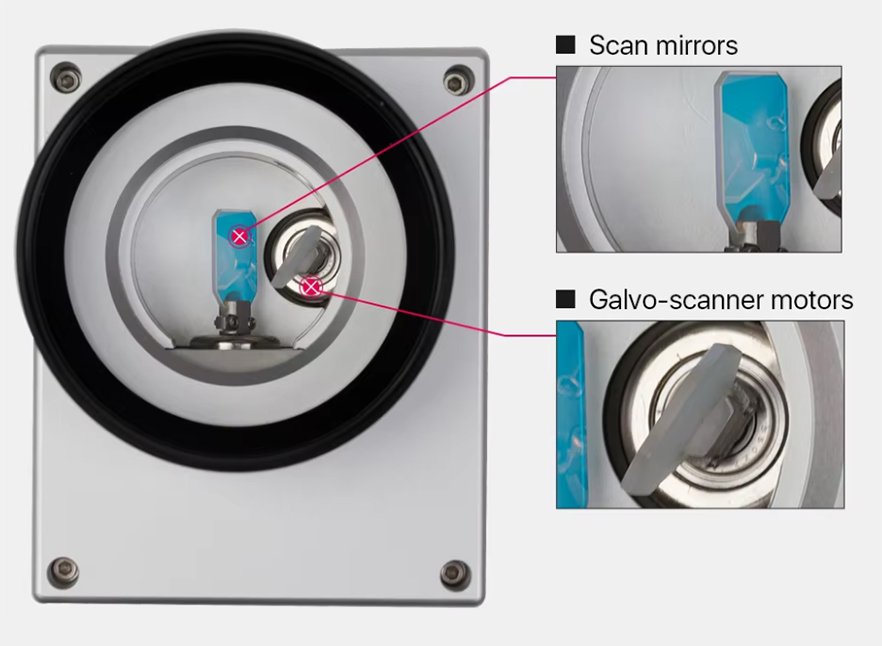

In laser cleaning machines, a galvo scanner is essential for directing and controlling the laser beam with high precision and speed. Acting as the “brain” of the system, the galvo scanner moves the laser across surfaces, ensuring effective and efficient cleaning over large areas. Without it, the laser would remain stationary, resulting in poor cleaning performance. With a quality galvo scanner, the cleaning process is optimized for speed, coverage, and accuracy—making it a crucial component for laser cleaning solutions.
>>Characteristics Of The Galvo Scanner
- High-speed scanning
The galvo scanner enables rapid laser marking and scanning, meeting the demands of modern laser cleaning applications.
- Excellent linearity and accuracy
The galvo scanner provides excellent linearity, and with pincushion and proportional correction, it fulfills the precision requirements for most industrial and cleaning applications.
- Low temperature drift and stable performance
The scanner is engineered for minimal zero-point and gain temperature drift, ensuring consistent performance during extended laser cleaning operations.
- Reliable and stable operation
Proven in the market, the galvo scanner consistently delivers reliable results and long-term durability.
>>Parameters Of Galvo Scanner
Input Aperture | 10mm |
Scan Angle | ±0.35rad |
Nonlinearity | <0.5mrad |
Setting Time | 0.4ms |
Repeatablility | <2urad |
Long-term Drift Over 8 Hours | <0.1mrad |
Marking Speed | <4m/s |
Positioning Speed | <10m/s |
Power Supply | ±15V/3A |

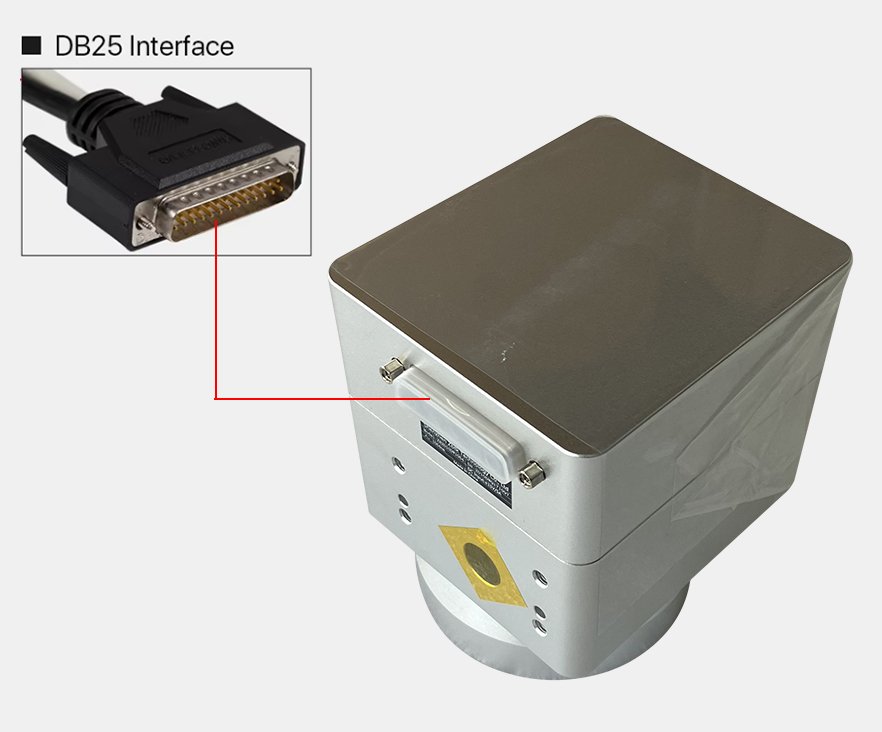

Communication Protocol | XY2-100 |

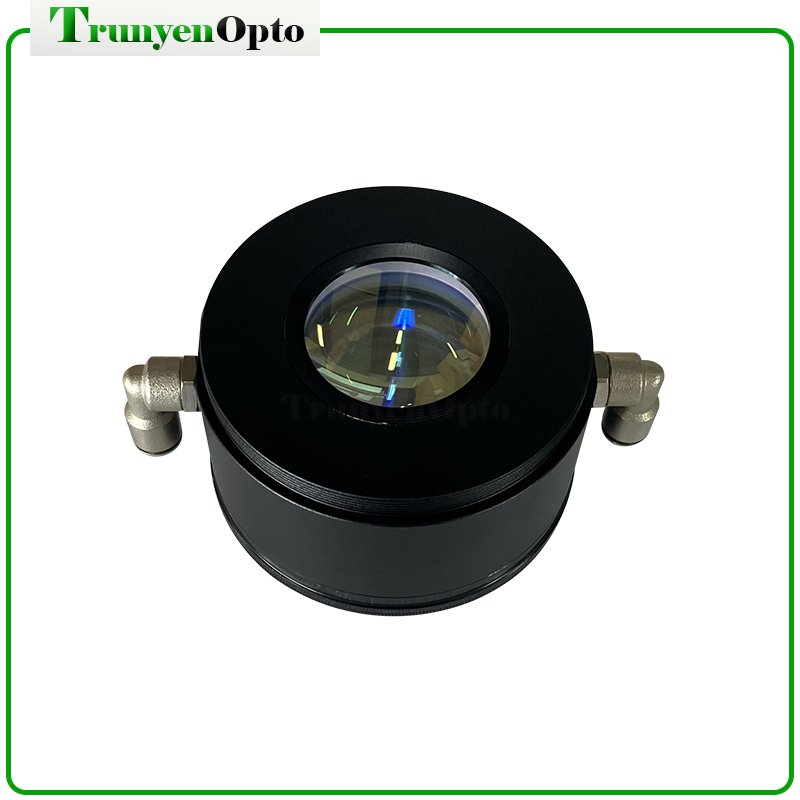

Lens Wavelength | 1064nm |
Working Temperature | 25±10(°C) |

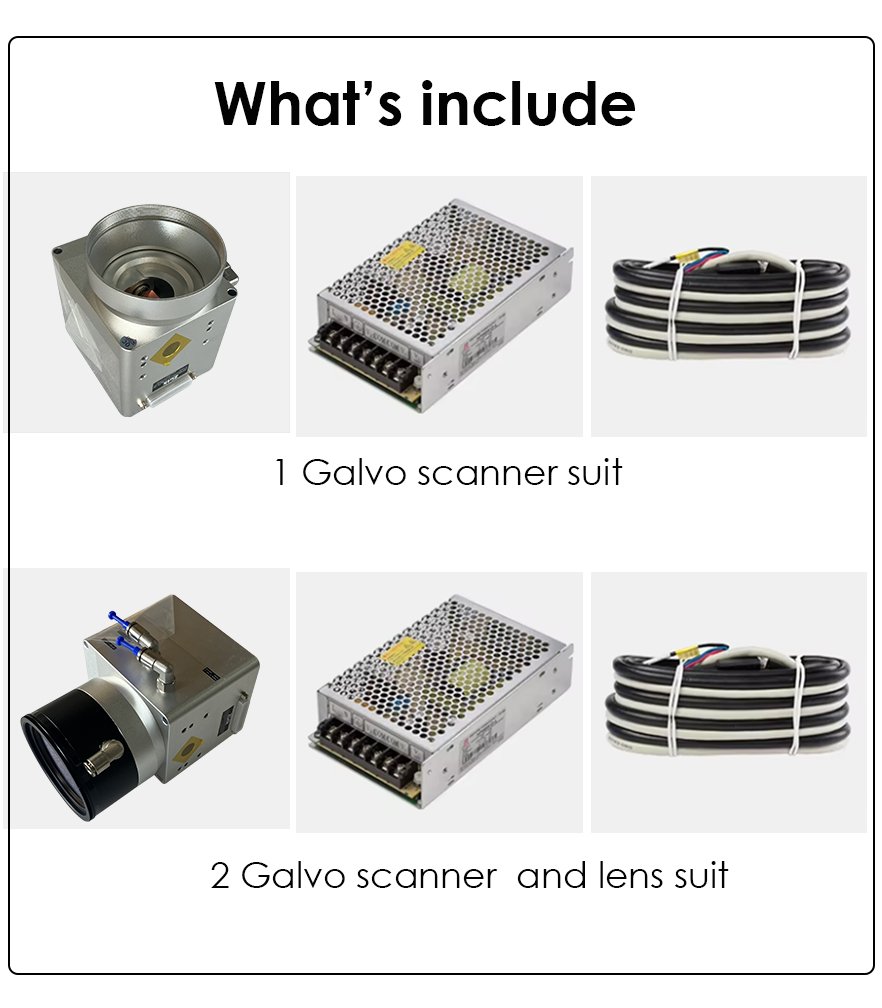

>> What's the laser suit?
